Fig. 7 | BMC Biomedical Engineering

Fig. 7

From: Telemetry-controlled simultaneous stimulation-and-recording device (SRD) to study interhemispheric cortical circuits in rat primary somatosensory (SI) cortex

Fig. 7

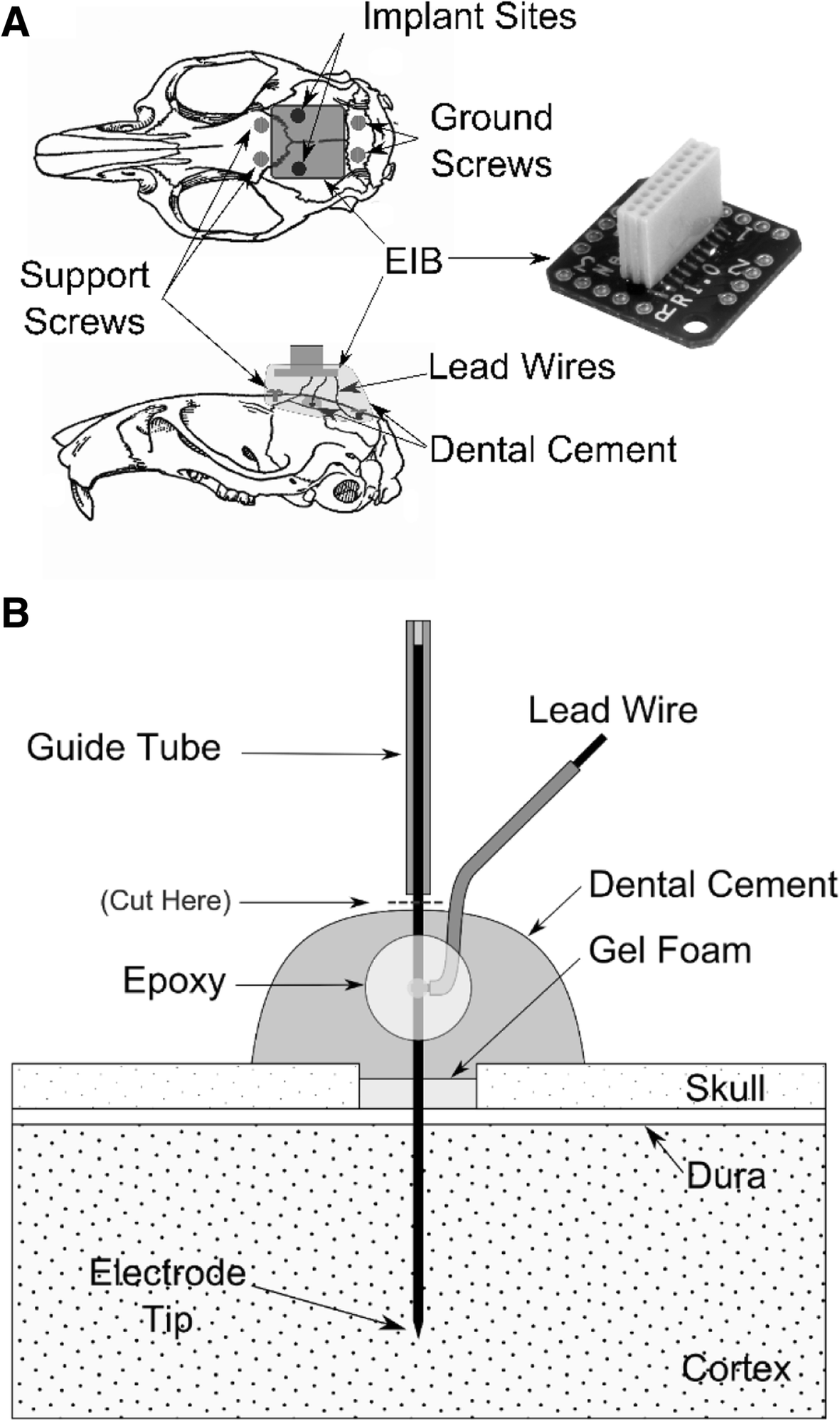

a Illustration of SRD headstage with EIB, approximate locations of implant sites, screws, lead wires, and encapsulating dental cement. b Illustration of chronic electrode implanted into cortex. Electrode is secured to the skull by dental cement. After dental cement was cured, the remaining electrode shaft and guide tube were cut just above the cured cement
